Shandong Zhushi Pharmaceutical Group Co., Ltd. is one of the leading manufacturers and suppliers of surgical bipolar forceps in China, also supports customized service. If you're going to wholesale advanced surgical bipolar forceps made in China, welcome to get quotation from our factory. For price consultation, contact us.

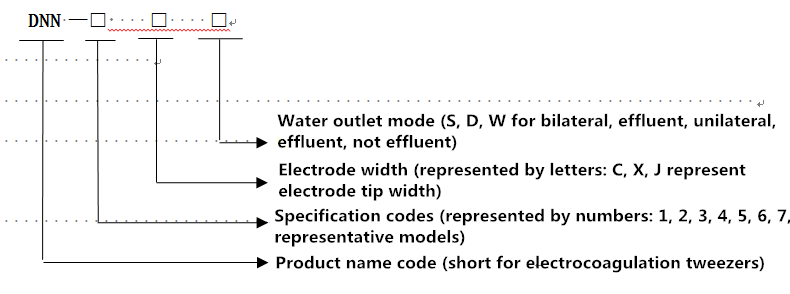

Classification Of Specifications And Models Of Zhu's Electric Coagulation Tweezers

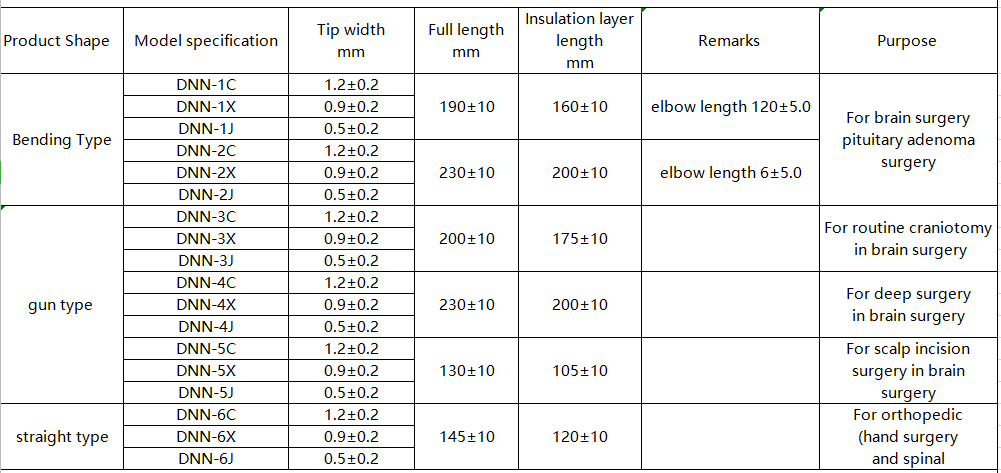

At Present Zhu Pharmaceutical Electric Coagulation Tweezers Main Specifications
Product Overview
This disposable bayonet bipolar forceps with integrated irrigation channel is a high-precision electrosurgical instrument specially used for delicate minimally invasive operations. It integrates three core functions: tissue clamping, bipolar coagulation hemostasis and intraoperative saline irrigation. Widely adopted in neurosurgery, otolaryngology, head and neck surgery, thoracic surgery and other precision surgeries, it can effectively clean blood and tissue residues during hemostasis, reduce tissue charring and thermal damage to normal tissues, significantly improve surgical safety and operating efficiency. The product is individually blister-packed and EO sterilized for single use to avoid cross-infection.

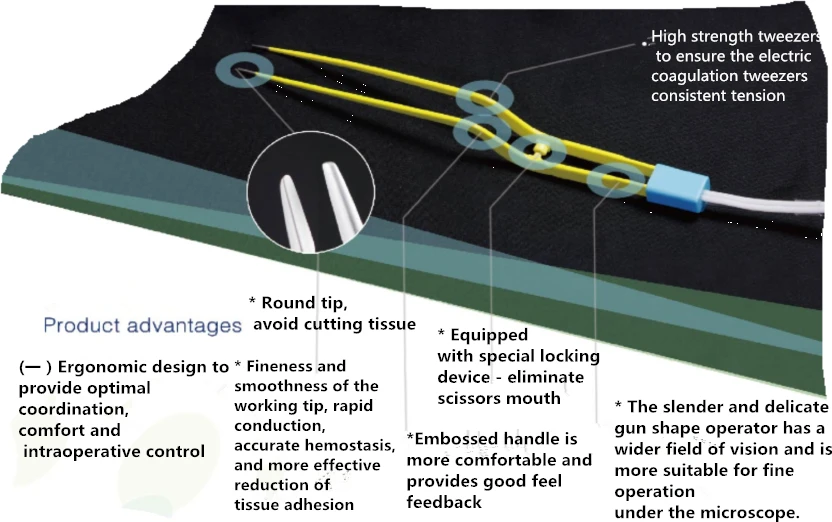

Core Features

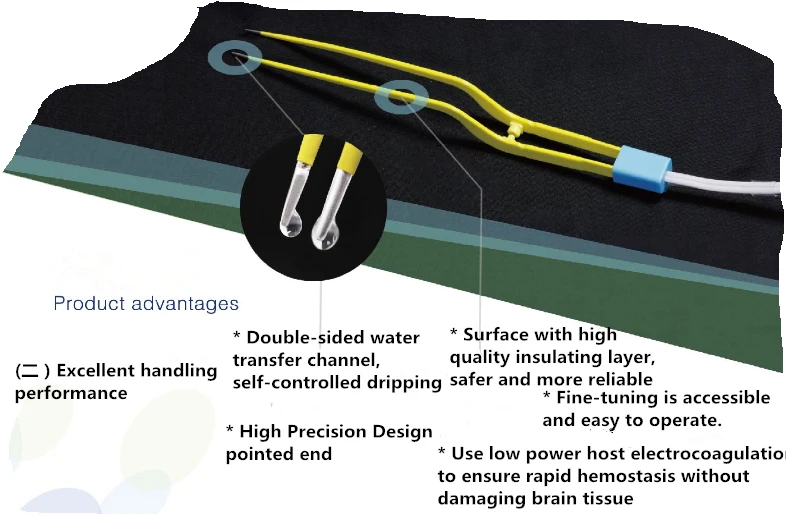

Ergonomic Bayonet Curved Design:
The classic bayonet curved structure enables the slender tip to reach deep and narrow surgical cavities smoothly without blocking the surgeon's field of vision. The anti-slip textured yellow handle delivers stable, comfortable grip for long-duration precise manipulation, ideal for high-precision delicate operations on nerves, blood vessels and fine soft tissues. A transparent protective cap is equipped on the tip to prevent collision damage during transportation and storage.
Built-in Independent Irrigation Pipeline:
Designed with an integrated flushing channel matching the main cable, it can continuously deliver sterile saline to the surgical field during coagulation. It quickly cools the cauterized area, washes away blood clots and tissue debris, prevents tissue adhesion and carbonization, maintains a clear surgical view, and greatly lowers the risk of nerve and blood vessel thermal injury.

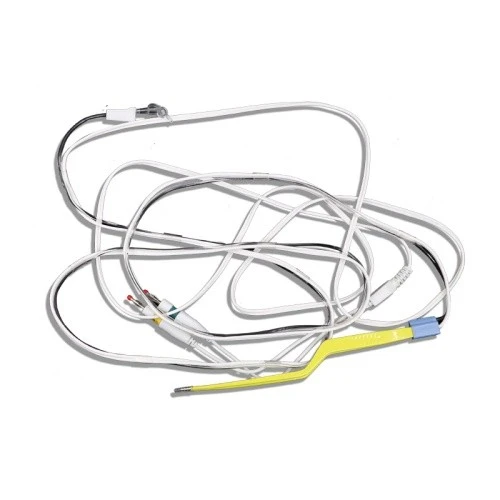

Color-Coded Universal Banana Plug Cable:
Equipped with a long flexible medical-grade connecting wire fitted with three color-coded 4mm banana plugs (red, yellow, green). The color-marked interface avoids misconnection, featuring stable conductive performance, strong tensile resistance and wide compatibility with most mainstream bipolar electrosurgical generators in global hospitals. The fully insulated forceps body effectively prevents current leakage and accidental burning of surrounding healthy tissues.

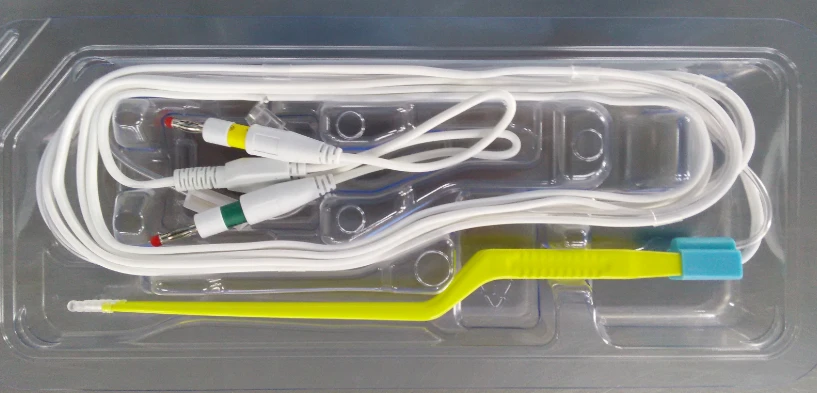

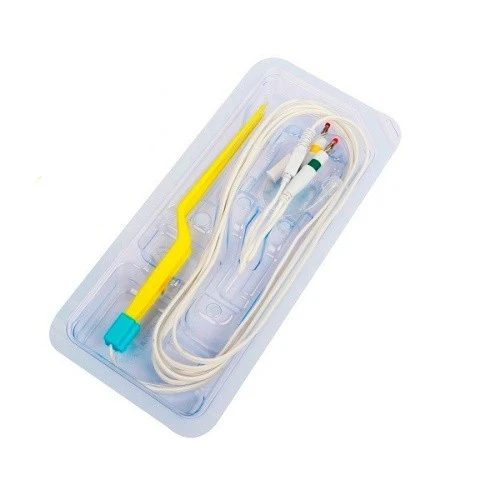

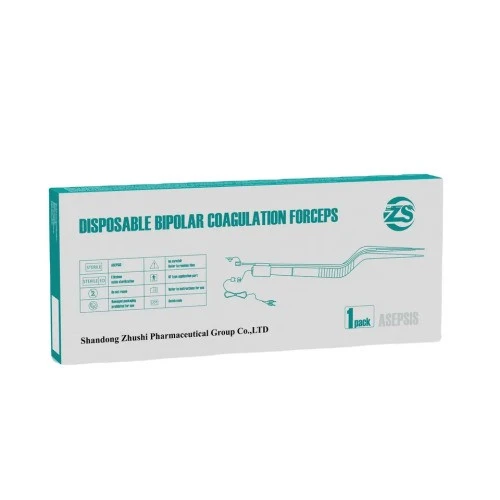

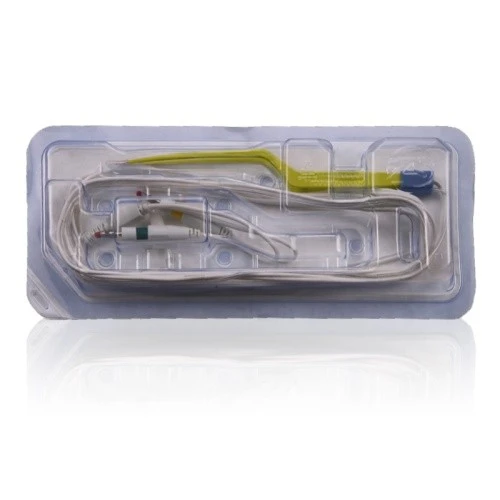

Rigid Blister Sterile Packaging:
The product is sealed in a transparent medical blister tray with outer sterile packaging and sterilized via ethylene oxide (EO). Single-use design eliminates hidden risks such as incomplete disinfection and cross-contamination caused by repeated cleaning and high-temperature sterilization of reusable forceps, fully compliant with hospital infection control standards.
Main Applications:
1. Neurosurgery: Intracranial, spinal and peripheral nerve precise hemostasis surgery.
2. ENT & Head and Neck Surgery: Ear, nose, throat, cranial base minimally invasive procedures.
3. Cardiothoracic Surgery, Plastic Surgery, Gynecology, General Surgery.
4. All kinds of deep minimally invasive surgeries requiring clear surgical field and precise hemostasis.
Instructions For Use:
1. Tear off the sterile outer package and take out the forceps from the transparent blister tray, remove the tip protective sleeve.
2. Insert the three color-coded banana plugs into the corresponding interfaces of the bipolar electrosurgical unit.
3. Connect the irrigation tube connector to the infusion pipeline or flushing device.
4. Clamp target bleeding tissue with the tweezer tip, activate the electrosurgical equipment for bipolar coagulation, and perform continuous irrigation as needed.
5. Discard the product as medical hazardous waste immediately after use; reuse is strictly prohibited.
Precautions:
1. Only for single disposable clinical use, never reuse.
2. Do not use if the packaging is damaged, damp or expired.
3. Inspect the insulation layer of the forceps body before surgery to prevent electric leakage injury.
4. Keep away from flammable anesthetic gases and volatile combustible disinfectants during operation.
Disposable Bayonet Irrigated Bipolar Forceps
Our irrigated bipolar electrosurgical forceps feature bayonet curved slender tip for deep surgical access without blocking vision. Built-in irrigation channel keeps surgical field clean, reduces tissue charring and thermal trauma. Fully insulated forceps prevent stray current damage, paired with long flexible wire and color-coded banana plugs for universal compatibility with most electrosurgical generators. Individually EO sterile blister packed for single use, perfectly suited for neurosurgery, ENT, cardiothoracic and other precision minimally invasive surgeries for safe and efficient hemostasis.
